Cube Compact Hybrid 500 cotton n reflex

Compact E-Bike

Article no: 818300

Passendes Zubehör

Technical details

Frameset

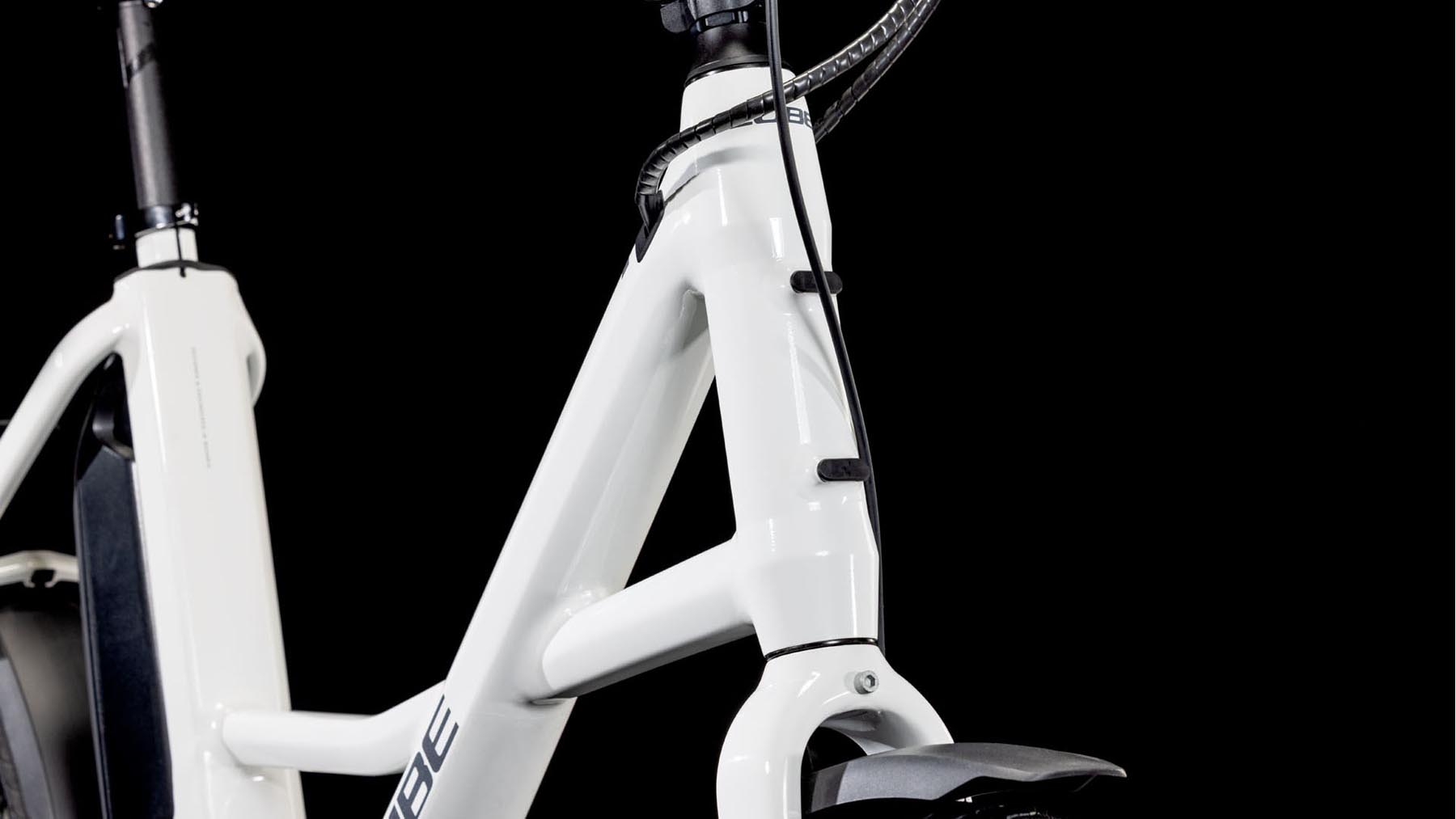

  • Frame: Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
  • Size: One Size
  • Fork: Aluminium Rigid Fork, 20"
  • Headset: Cube H835D3, Semi-Integrated, Sealed bearing
Equipment

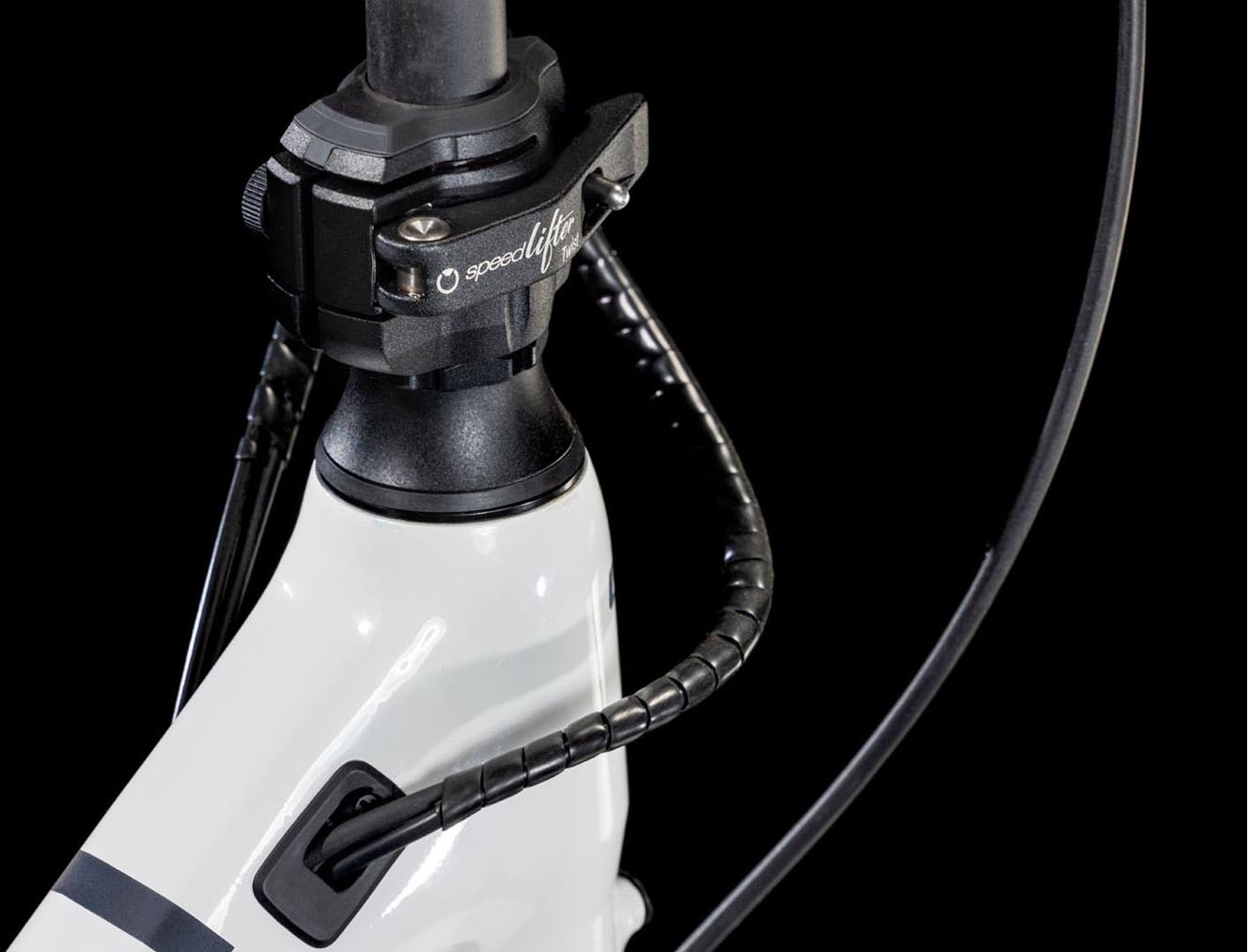

  • Stem: BySchulz Speedlifter Twist Pro SDS T15

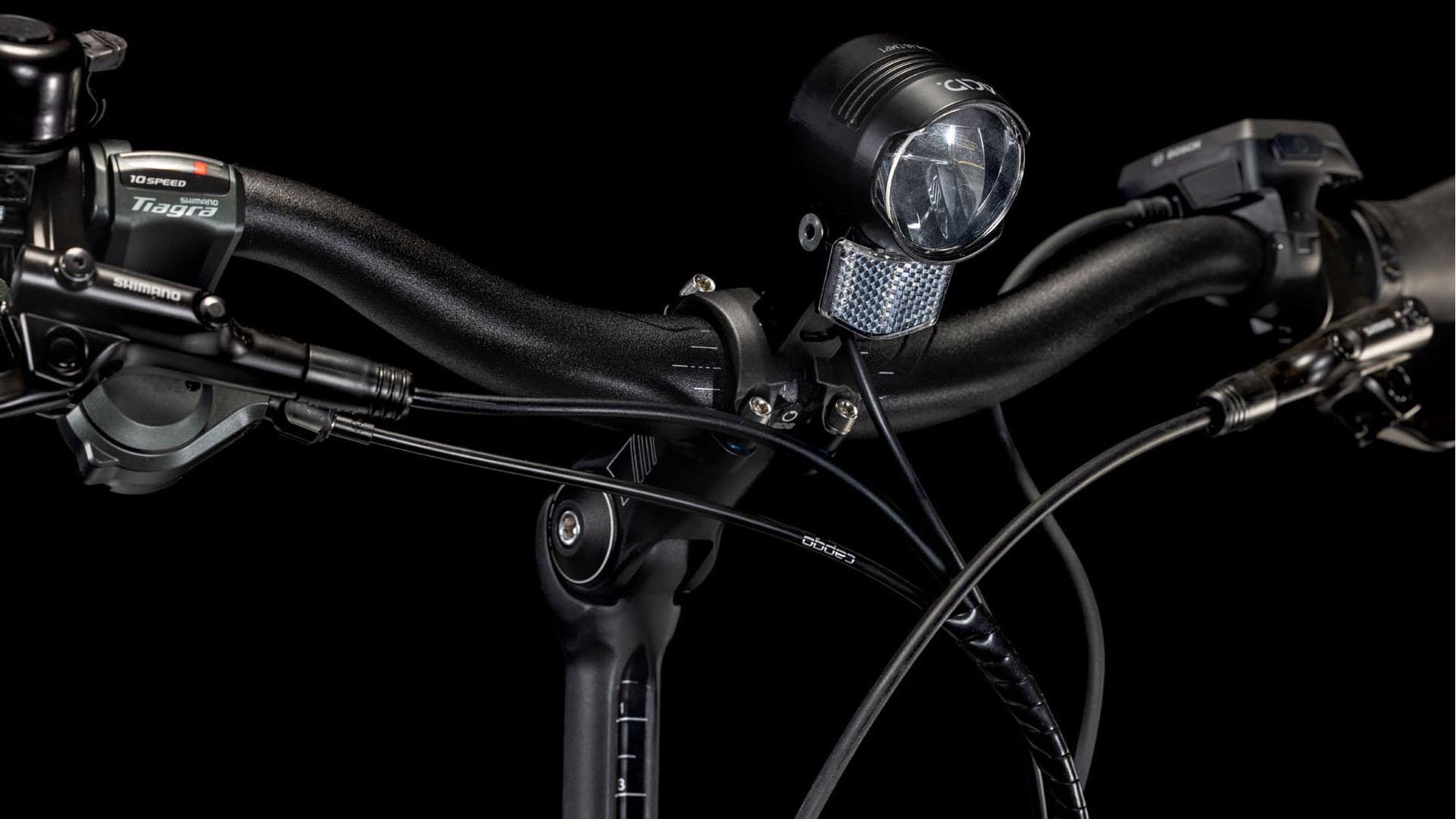

  • Handlebar: CUBE Comfort Trail Bar, 680mm
  • Grips: ACID Travel Comfort
  • Pedals: ACID PP MTB
  • Saddle: Natural Fit Sequence
  • Seat Post: Newmen Evolution, 27.2mm
  • Seat Post Clamp: CUBE Varioclose, 31.8mm
  • Front Light: ACID Front Light PRO-E 60, 12V, DC
  • Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
  • Kickstand: CUBE CenterStand
  • Mudguards: ACID 75, BB-Mount
  • Bell: Easy Bell

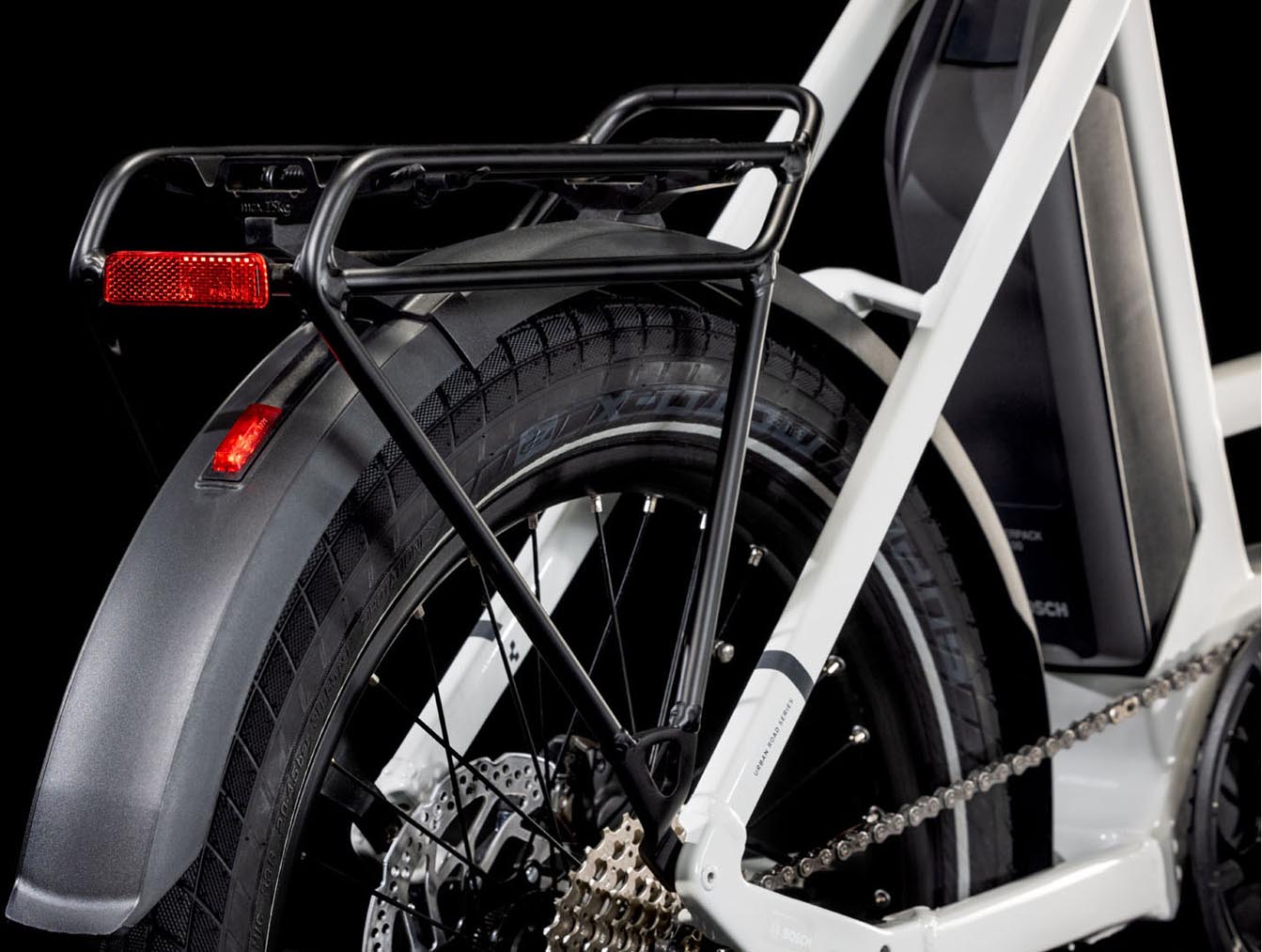

  • Rack: ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
Drive
  • Rear Derailleur: Shimano Tiagra RD-4700GS, 10-Speed
  • Shifter: Shimano Tiagra SL-4700
  • Crankset: ACID Trekking Hybrid, 40T
  • Cassette: Shimano CS-HG500, 11-34T
  • Chain: KMC X10
Brakes
  • Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/160)
Wheels
  • Rims: CUBE EX30, 32H, Disc, Tubeless Ready
  • Hub Front: Shimano HB-QC300, QR, Centerlock
  • Hub Rear: Shimano FH-QC300-HM, QR, Centerlock
  • Tires: Schwalbe Super Moto-X, Double Defense, 62-406
E-Bike System
  • Drive Unit: Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
  • Battery: Bosch PowerPack 500
  • Charger: Bosch 2A
  • Display: Bosch Purion
Additional Information
  • Color: cotton´n´reflex
  • Weight (KG): 22,8 kg
  • Maximum weight allowed: 142 kg

Product description

Cube Compact Hybrid 500 cotton n reflex - Compact E-Bike

Urban mobility with Bosch engine: Cube Compact Hybrid

The Cube Compact Hybrid 500 is the perfect choice for commuters who value performance, comfort and style. With the powerful Bosch Performance motor and high-quality components such as the Shimano Tiagra gear system, this e-bike offers an effortless ride through the city.

  • Bosch Performance Generation 3 motor with 65 Nm for dynamic acceleration
  • Aluminum Superlite frame for stability and lightness
  • Hydraulic Shimano disc brakes for precise control in all weather conditions
  • Aluminum rigid fork for optimum riding stability on urban trails
  • Elegant design in cotton'n'reflex for a modern look Look

This model combines functionality with a compact design that is optimized for narrow city streets and small parking spaces.

High-quality components: Shimano gears & hydraulic brakes

With the Shimano Tiagra 10-speed drivetrain and the Shimano BR-MT200 hydraulic disc brakes, Cube relies on proven brand quality. The gears guarantee precise and smooth shifting, while the brakes offer reliable safety even in wet conditions or on steep descents.

Thanks to the aluminum rigid fork and the sturdy frame, you can master even bumpy roads with ease. The 20-inch wheels with Schwalbe Super Moto-X tires offer you excellent traction and comfort for your daily commute.

Performance & style combined: battery, color and display

The Cube Compact Hybrid 500 impresses with a powerful Bosch PowerPack 500 battery, which is optimized for long distances. Everything is controlled via the intuitive Bosch Purion display, which clearly shows you the speed, battery status and support modes.

The cotton'n'reflex color makes this bike not only functional, but also visually eye-catching. Whether for the commute to work or spontaneous excursions - this e-bike is your ideal companion for everyday urban life.

[deeplNEW]

Who is the Compact Hybrid 500 suitable for?

Battery capacity: 500Wh
Bike Type: Compact Bike, E-Bike
Display Type: Bosch Purion
E-Bike Engine: Bosch Performance
Fahrradpedale: Mit Pedale
Model year: 2025
Target Group: Men, Unisex, Women

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
