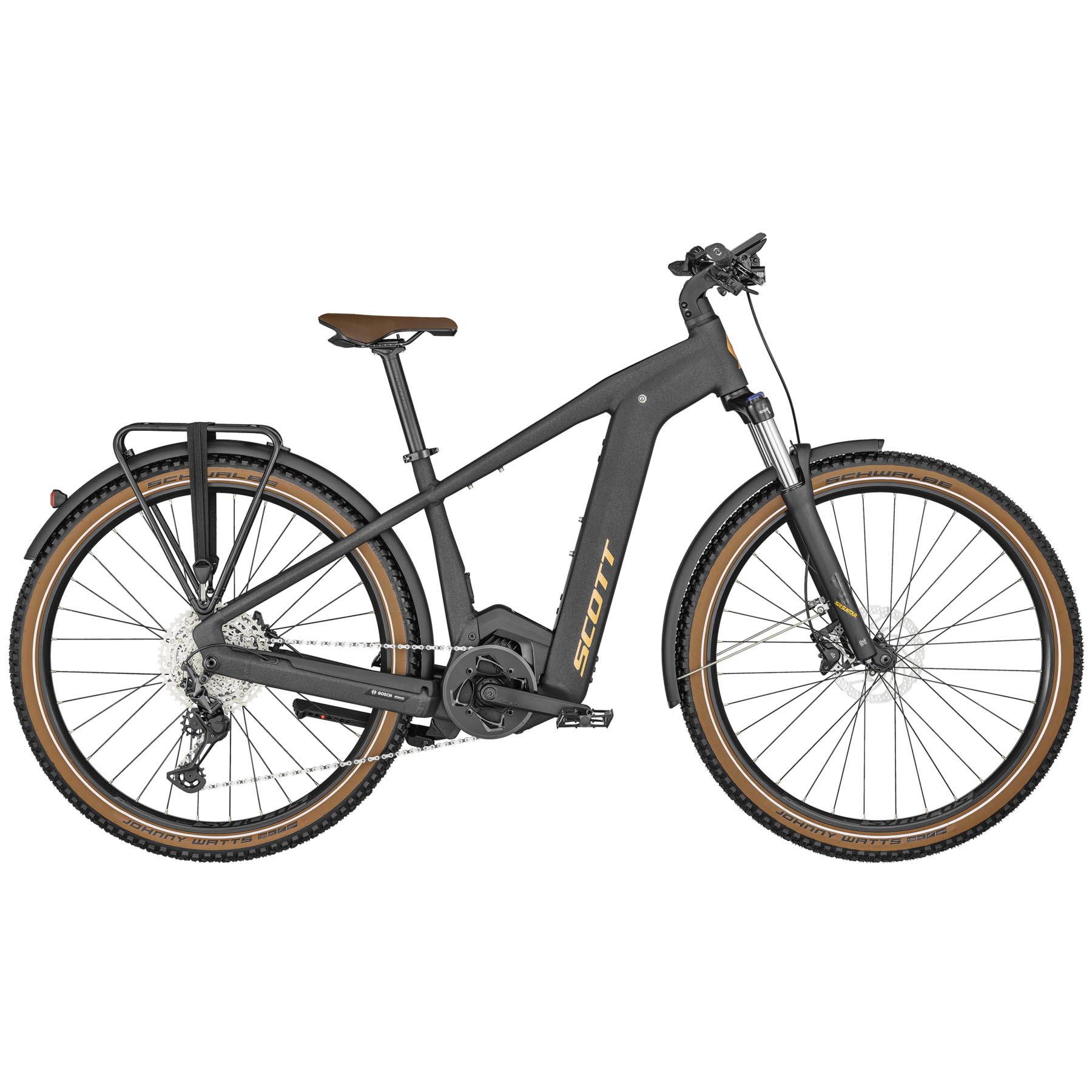

Scott Axis eRIDE 20 Men Galaxy Black

E-Bike Hardtail Mountainbike Touring Bike

Article no: 290635008

Passendes Zubehör

Technical details

Frameset
  • Frame: 6061 Alloy custom butted tubing, Bosch Integr. removable Battery, internal cable routing
  • Fork: SR Suntour XCM34 Coil / Tapered / S-XL 29" / 120mm Travel / 15x110 bolt Axle / Lock Out
  • Headset: Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm
Drive
  • Rear Derailleur: Shimano RD M8100SGS / 12 Speed
  • Shifter: Shimano Deore Trigger SL-M6100RA
  • Number of gears: 12
  • Crankset: Miranda 172,5MM
  • Crank length: 172,5
  • Chain: KMC E12S
  • Cassette: Shimano CS-M6100-12 10-51T 12S
Brakes
  • Brake (front): Shimano BR-MT410 2 Piston
  • Brake (rear): Shimano BR-MT410 2 Piston
  • Brake Discs : Front: Shimano SM-RT30 CL 180 mm | Rear: Shimano RT-EM300M CL 180 mm
Wheels
  • Front rim: Syncros X18 Disc
  • Rim rear: Syncros X18 Disc
  • Tires: Front: Schwalbe Johnny Watts 29x2.35" Wired | Rear: Schwalbe Johnny Watts 29x2.35" Wired
  • Hub Front: Shimano HB-MT400 / 15x110mm
  • Hub Rear: Shimano FH-MT510B / Boost 12x148mm
  • Spokes: Black Spokes
Equipment
  • Handlebar: Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise
  • Handlebar width: 720
  • Stem: Syncros with front Light mount and Intuvia 100 mount
  • Stem length: 70
  • Grips: Syncros Lock On Grip
  • Saddle: Syncros Capilano
  • Seat Post: Syncros M3.0 / 31.6
  • Pedals: VP VPE-506
  • Front Light: Lezyne Hecto E65 210 Lumen
  • Rear Light: Lezyne Fender
  • Rack: Axis by Racktime SnapIt 2.0 25KG
  • Mudguards: Curana alloy profile Fender
  • Kickstand: Ursus Kickstand
E-Bike System
  • Drive Unit: Bosch Performance CX BES3
  • Battery: PowerTube 625Wh
  • Display: Intuvia 100 Display
  • Charger: 4A Charger
Additional Information
  • Weight (KG): 27,86
  • Maximum weight allowed: 128

Product description

Scott Axis eRIDE 20 Men Galaxy Black - E-Bike Hardtail Mountainbike Touring Bike

Powerful Bosch Performance CX motor for off-road adventures

This off-road e-bike impresses with its powerful Bosch Performance CX motor, which offers you impressive support on any terrain. Perfect for sporty riders who value reliability and dynamics.

  • Bosch Performance CX motor with up to 85 Nm torque for every climb
  • PowerTube 625Wh battery for extra-long ranges
  • Intuvia 100 display, easy to operate and clear to read
  • High-quality components, ideal for demanding trails
  • Efficient drive that combines powerful performance and economy

With this motor, you are ideally equipped for demanding off-road tours and enjoy a powerful, smooth riding experience.

SR Suntour Fork & Shimano damper for unrestricted riding pleasure

The SR Suntour XCM34 fork offers optimum comfort and stability with 120 mm suspension travel - no matter how rough the terrain is. Its robust construction combined with the lock-out function ensures perfect adaptation to different conditions. Together with the Shimano dampers, it guarantees a safe and controlled riding experience.

Shimano Gears & brakes for precise control

Equipped with a Shimano 12-speed gear system, the e-bike delivers precise and responsive gear selection, while the hydraulic Shimano brakes ensure maximum safety. The lightweight and stable 6061 alloy frame impresses with its modern design and neat cable routing. With its sporty color, the bike also makes a visual statement.

[deeplNEW]

Who is the Axis eRIDE 20 Men suitable for?

For the Alpine Tourer. There are hardly any other bikes that can be used as variably as Hardtails. With new drives and increasingly sophisticated technology, these bikes are taking the market by storm. Own performance classes in competitive sports are being planned. This category proves that with a pedelec, fun and sportiness do not go astray. Even in technically demanding trails, these hardtails make an agile impression. If you can't get enough of mountain biking, you've come to the right place!

The advantages of 29 inch tires

29 inch is THE trend of the last few years, which was able to assert itself completely. Initially viewed critically by mountain bike purists and equipped with some teething troubles, the bike industry has recognized the trend and made it the new standard through continuous improvements. The advantage of the 29" tyres is the enormous running smoothness, which brings great advantages and saves power on long tours as well as uphill and downhill. Obstacles are easier to overcome due to the larger circumference of the wheels, and a greater distance is covered by turning the bottom bracket. By improvements and adjustments in the frame construction and the component selection, initial problems with the agility in the Trail and the optics of smaller frames were optimally balanced. Whether fully or hardtail, a 29 will take you far away.

Battery capacity: 625Wh
Bike Type: E-Bike, Mountainbike Hardtail, Trekking Bike
Display Type: Bosch Intuvia 100
E-Bike Engine: Bosch Performance CX
Frame shape: Diamond
Material: Aluminum
Model year: 2024
Target Group: Men
Wheel Size: 29 inch

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
