Technical details
- Gesamtlänge: 390 mm
- Hintere Verlängerung: 255 mm
- Vordere Verlängerung: 105 mm
- Breite: 90 mm
- Material: Recyceltes Polypropylen
- Gewicht: 100 g
- Lieferumfang: Schutzblech, 2x Schraube und U-Scheibe, 2x Gummipuffer, 1x Shim zur Winkeleinstellung
Mudhugger EVO Kompatibilitätschart
Diese Übersicht soll helfen das richtige EVO Schutzblech, passend zur Federgabel zu finden. Einige Gabelmodelle erfordern für die Montage zusätzliche Teile oder geringfügige Modifikationen am Schutzblech, damit dieses passt.
Bitte beachten:
Minimale Gabelvorbiegung (Offset) für alle EVO Schutzbleche: 44 mm
❌ - bedeutet nicht kompatibel.
✅ - bedeutet kompatibel, bitte zusätzliche Hinweise beachten.
✅* - bedeutet, dass das Erwärmen des Schutzbleches notwendig ist, um die Flügel etwas aufzuweiten - wir empfehlen das Schutzblech in heißes Wasser zu legen.
| EVO Bolt-On | EVO Zip-Tie | |
| FOX 32 | ❌ | ✅ |
| FOX 34 27.5" + 29" (2017-21) | ✅ nur bis 2020 | ✅ |
| FOX 36 27.5" + 29" (2017-21) | ✅ | ✅ |
| FOX 38 (2021) | ✅ | ✅ |
| FOX 40 26 (2017) | ❌ | ✅ |
| FOX 40 27.5" (2018-20) | ❌ | ✅ |
| FOX 49 (2021) | ❌ | ✅ |
| Marzocchi Bomber Z1 | ✅ | ✅ |
| Marzocchi Bomber Z2 | ❌ | ✅ |
| Marzocchi Bomber 58 | ✅* | ✅ |
| RockShox 27.5" + ZEB 29" | ✅ + Adapter | ✅ |
| RockShox Domain | ✅ + Adapter | ✅ |
| RockShox Recon Gold/Silver | ✅ + Adapter | ✅ |
| RockShox 35 Gold/Silver | ✅ + Adapter | ✅ |
| RockShox Lyrik | ❌ | ✅ |
| RockShox Boxxer | ❌ | ✅ |
| RockShox Pike | ❌ | ✅ |
| RockShox Revelation | ❌ | ✅ |
| Öhlins RXF36 27.5" | ✅ + Adapter | ✅ |
| Öhlins RXF 29" | ✅ + Adapter | ✅ |
| Öhlins DH38 | ✅* + Adapter | ✅ |
| DVO Onyx SC | ✅ + Adapter | ✅ |
| DVO Sapphire | ✅ + Adapter | ✅ |
| DVO Diamond | ✅ + Adapter | ✅ |
| Suntour | ❌ | ✅ |
| Cane Creek | ❌ | ✅ |
| Formula | ❌ | ✅ |
| RST | ❌ | ✅ |
| Manitou | ❌ | ✅ zusätzliche Bohrungen am Schutzblech erforderlich |
| BOS | ❌ | ✅ |
| DT Swiss | ❌ | ✅ |
| MRP | ❌ | ✅ |
| TRUST | ❌ | ✅ |
| Wren | ❌ | ✅ |
| X-Fusion | ❌ | ✅ |
Product description

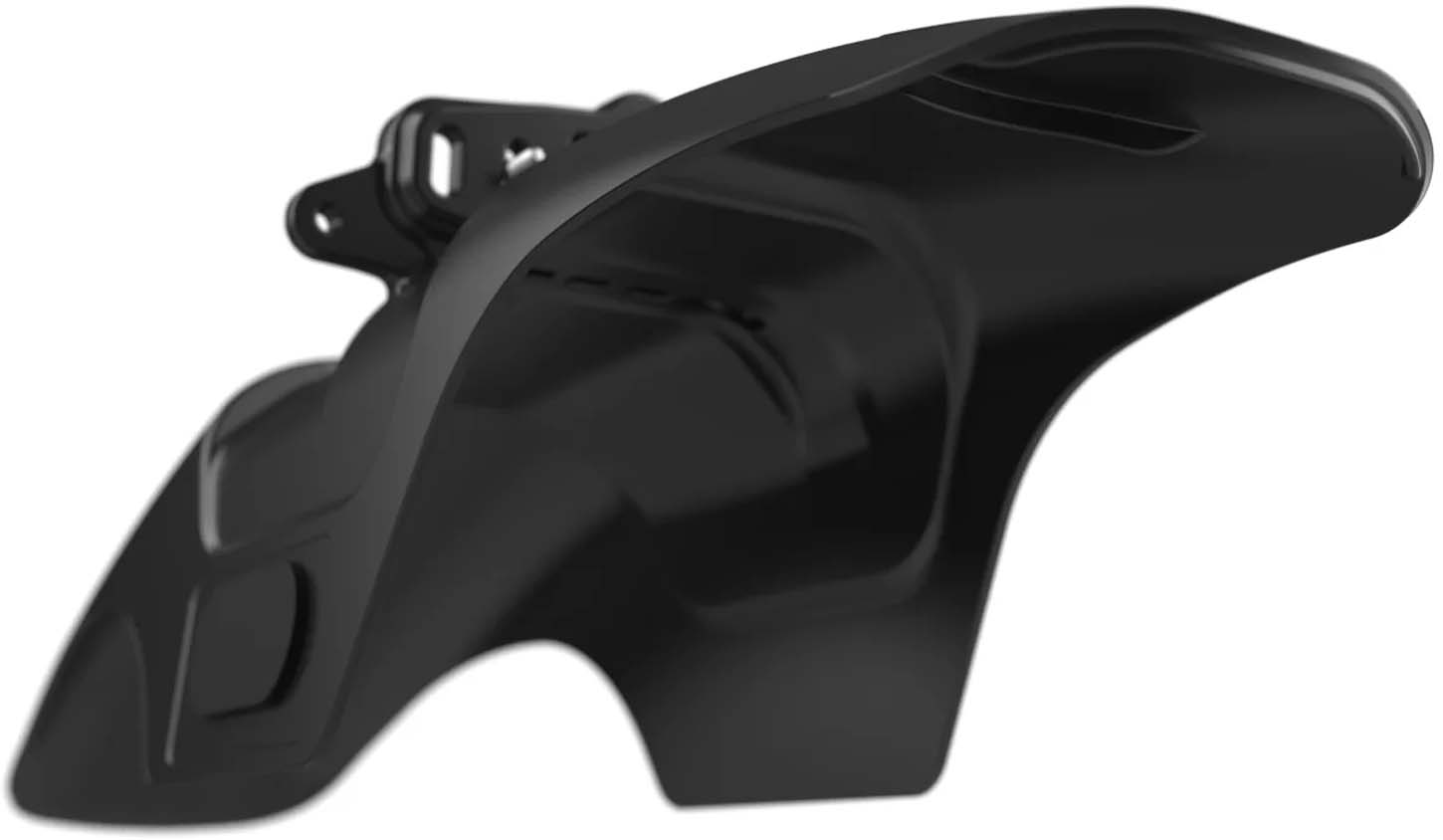

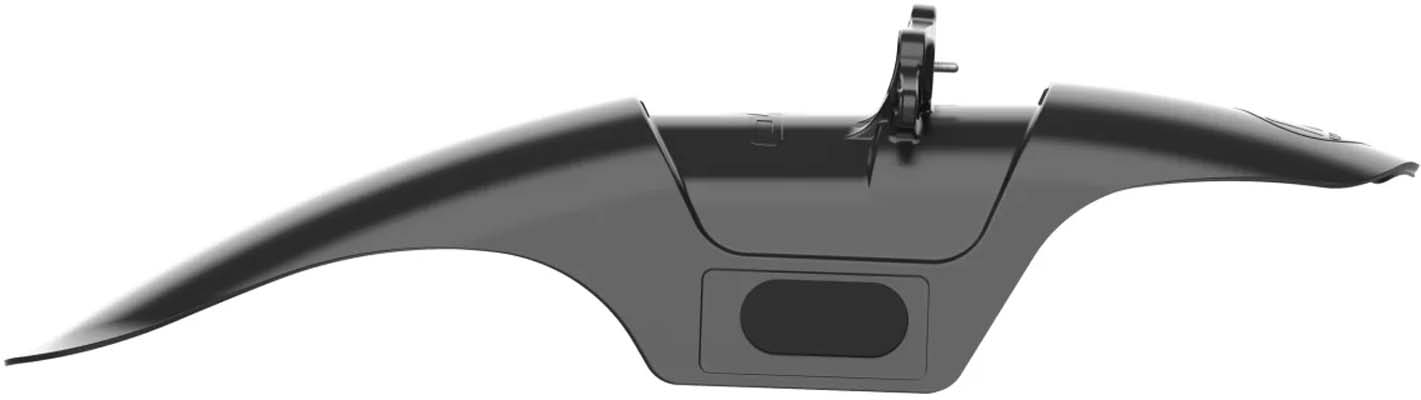

Mudhugger EVO Bolt-On Shorty Vorderrad-MTB Mudguard - up to 3.0" tire, 27.5" and 29" - length: 390 mm
The Mudhugger EVO Bolt-On was introduced in 2021 and developed with the help of riders from the DH World Cup and EWS. It was designed based on the current FOX 36/38 and RockShox ZEB models to address the problem of collision between the fender and fork crown at full compression, which many other fenders have. It is also stiffer and provides more tire clearance than the original design. The short version of the EVO Bolt-On is optimized so that the fender is just as long as necessary to ensure the best protection in all but the most extreme conditions. For this it offers better torsional rigidity. A slight spoiler improves the splash protection. The rear length is 255 mm, the front 105 mm.
The Mudhugger EVO Bolt-On is compatible with many fork models, but sometimes requires additional adapters for mounting. Please note the compatibility chart and contact us in case of doubt, the desired fork is not yet listed. If there are no threads on the fork crown, the EVO Zip-Tie version must be used.
